Deep drawing and casting are two different metal forming processes that differ significantly in multiple aspects:
Forming principle:
Deep drawing is the process of applying tension to a metal sheet or billet, causing it to undergo plastic deformation in a mold, resulting in the formation of parts with specific shapes and depths.
Casting is the process of pouring molten metal liquid into a mold, allowing it to cool and solidify to obtain the desired shape of the part.
Material properties:
Deep drawing usually elongates the grains of a material along the deformation direction, thereby improving the strength and hardness of the material in a specific direction, but may reduce its ductility.
The structure of castings is relatively loose, and the mechanical properties may not be as good as those of parts that have undergone deep drawing, but can be improved through subsequent heat treatment and other processes.
Shape complexity:

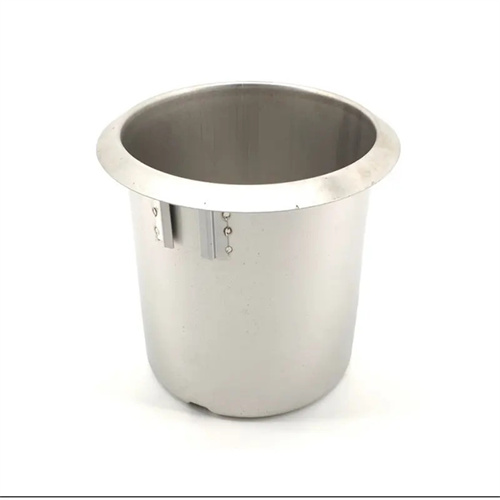

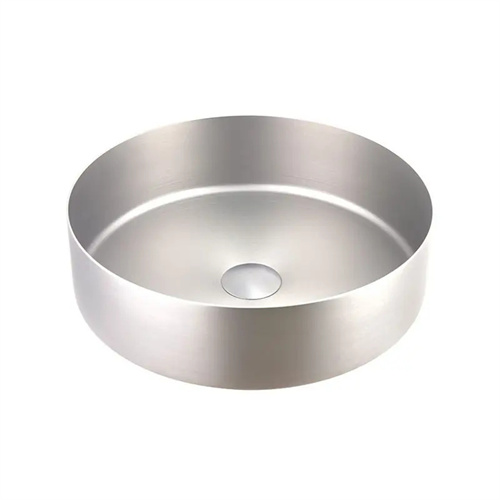

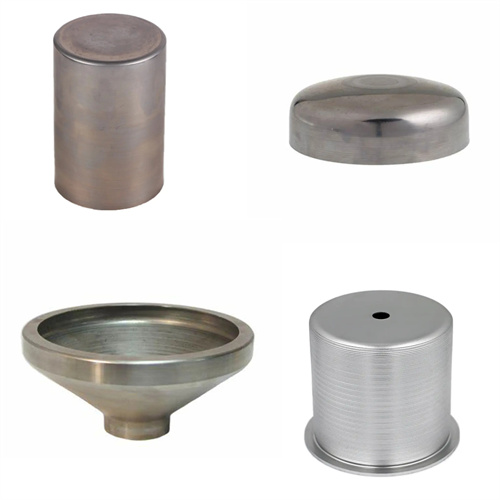

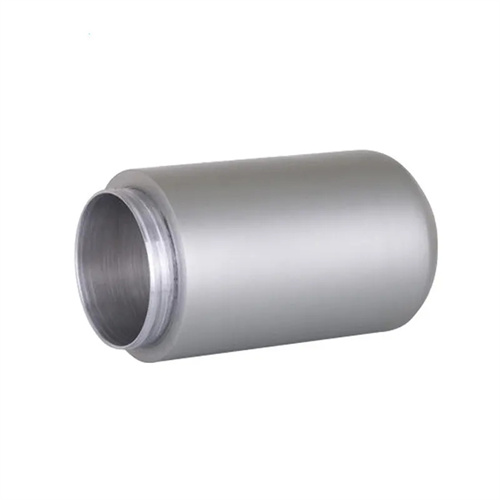

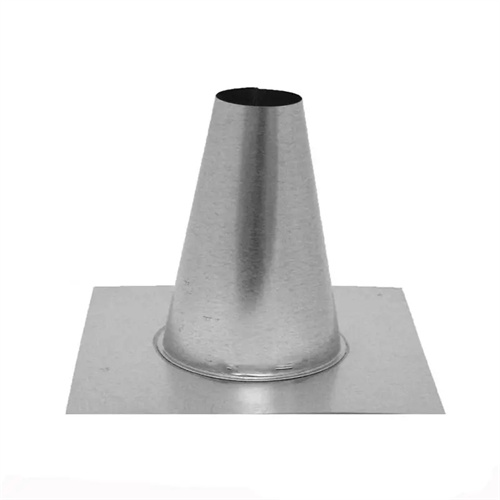

Deep drawing is suitable for manufacturing parts with relatively simple shapes, axisymmetric or certain curvatures, such as cup-shaped, cylindrical, etc.
Casting can produce parts with very complex shapes and internal cavities, almost without shape limitations.
Dimensional accuracy:
Deep drawing can generally achieve high dimensional accuracy and good surface quality.
The dimensional accuracy of castings is relatively low, and the surface may require more subsequent processing.
Production efficiency:
For mass production of simple shaped parts, deep drawing efficiency is higher.
Casting is suitable for mass production of parts of various shapes, especially for large and complex parts, where production efficiency may be higher.
Material utilization rate:
The material utilization rate of deep drawing is relatively high because there is less waste.
During the casting process, a large amount of waste materials such as gates and risers may be generated, resulting in a relatively low material utilization rate.
Manufacturing an oil pan for a car engine, if the shape is relatively regular, using deep drawing technology can achieve good accuracy and surface quality; If the internal structure of the oil pan is complex, with more reinforcing ribs and cavities, the casting process may be more suitable.
When it comes to manufacturing components, we often find ourselves comparing different processes to determine the best fit for specific applications. Two widely used methods, deep drawing and casting, each have their own unique characteristics, advantages, and limitations. Understanding the differences between deep drawing and casting parts is crucial for us to make informed decisions and deliver products that meet the highest standards of quality and functionality.
One of the most fundamental differences lies in the manufacturing processes themselves. In deep drawing, we start with a flat sheet of metal, typically made of materials like stainless steel, aluminum, or copper. Using a punch and a die, we apply force to the sheet, gradually shaping it into a three-dimensional form. This process relies on the plastic deformation of the metal, where it is stretched and formed without breaking. On the other hand, casting involves melting a material, such as metal, plastic, or ceramic, and pouring it into a mold. Once the material cools and solidifies within the mold, the part is ejected. The casting process allows for the creation of complex shapes that might be difficult or impossible to achieve through deep drawing.
Material utilization and waste generation also set these two methods apart. With deep drawing, we strive to make the most efficient use of the sheet metal. Advanced nesting techniques are employed to arrange the part shapes on the sheet in a way that minimizes scrap. However, some amount of waste is still inevitable, especially when dealing with irregularly shaped parts. In contrast, casting can be more efficient in terms of material usage, especially for parts with complex geometries. The molten material fills the entire mold cavity, and any excess can often be remelted and reused, reducing overall waste. This makes casting an attractive option when working with expensive or scarce materials.
The mechanical properties of deep drawing and casting parts also vary significantly. Deep – drawn parts tend to have enhanced strength and durability due to the work hardening that occurs during the forming process. The repeated stretching and deformation of the metal aligns its internal grain structure, increasing its resistance to wear and fatigue. Casting parts, on the other hand, may have different mechanical properties depending on the casting method used. For example, parts produced through die casting can have good dimensional accuracy and surface finish but may have lower strength compared to deep – drawn parts of the same material. Sand – cast parts, while capable of creating large and complex shapes, may have a more porous structure, which can affect their strength and corrosion resistance.
Dimensional accuracy and surface finish are important considerations for us when choosing between these two processes. Deep drawing offers high levels of dimensional accuracy, especially when using precision – engineered dies and advanced stamping equipment. The parts can be produced with tight tolerances, making them suitable for applications where exact fits are required, such as in the automotive and electronics industries. Casting, on the other hand, can vary in terms of accuracy. Die casting can achieve relatively high precision, but sand casting and other forms of casting may have larger tolerances. Surface finish also differs; deep – drawn parts usually have a smooth and consistent surface, while casting parts may require additional finishing operations, such as machining or polishing, to achieve the desired surface quality.
Production speed and cost are significant factors that influence our decision – making. Deep drawing can be a relatively fast process, especially for high – volume production runs. Once the dies are set up, parts can be produced in rapid succession. However, the initial cost of tooling for deep drawing can be quite high, especially for complex parts. Casting, on the other hand, may have longer production cycle times, especially for processes like sand casting, which involve multiple steps, including mold preparation and material solidification. The cost of casting can also vary depending on the complexity of the mold and the type of casting process used. While the tooling costs for some casting methods can be lower than those for deep drawing, the overall production cost may still be influenced by factors such as material waste and finishing requirements.
In conclusion, both deep drawing and casting have their own distinct advantages and are suitable for different applications. We carefully evaluate the specific requirements of each project, including part geometry, material properties, dimensional accuracy, production volume, and cost constraints, to determine whether deep drawing or casting is the better choice. By understanding these differences, we can ensure that we select the most appropriate manufacturing process to deliver high – quality parts that meet the needs of our clients.
